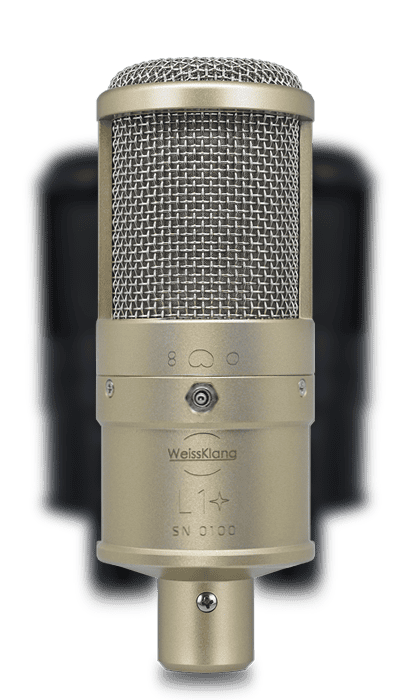

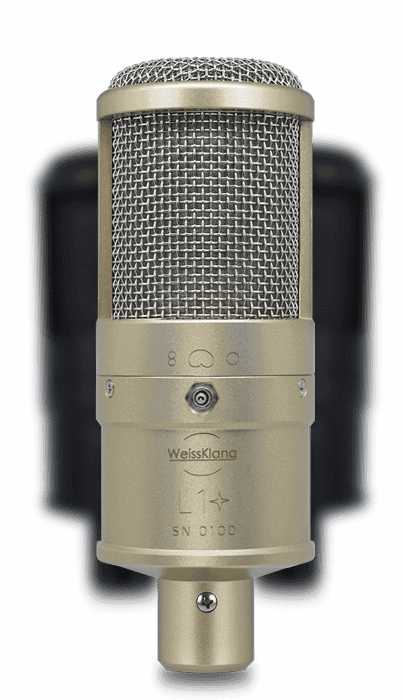

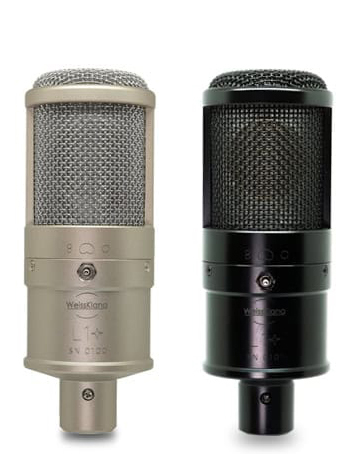

WeissKlang L1 Plus large-diaphragm condenser microphone

High-resolution & Multipattern Large-diaphragm condenser microphone with WMK-1D capsule

Max. SPL
140 dB SPL
Self-noise
4 dB-A
Signal-to-noise ratio
90 dB-A
Details Buy now

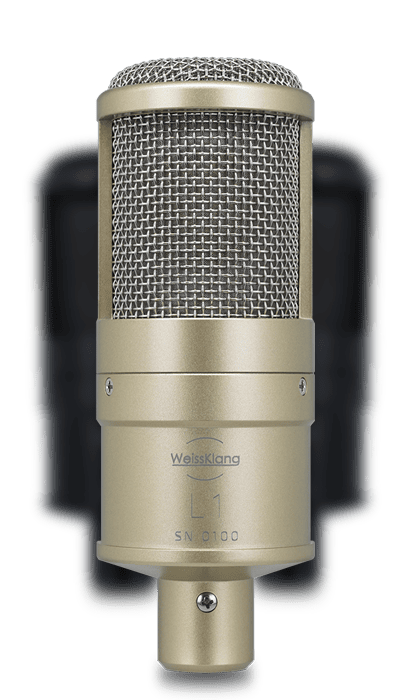

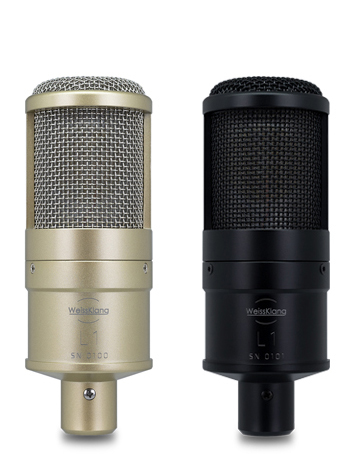

WeissKlang L1 large-diaphragm condenser microphone

High-resolution Large-diaphragm condenser microphone with WMK-1 capsule

Max. SPL
140 dB SPL
Self-noise
4 dB-A
Signal-to-noise ratio
90 dB-A
Details Buy now

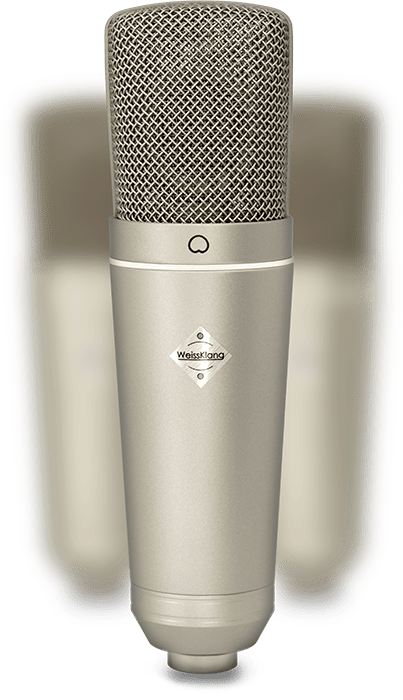

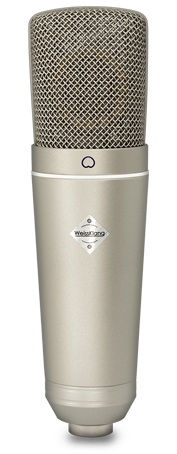

WeissKlang V17 large-diaphragm condenser microphone

High-performance Large-diaphragm condenser microphone with WMK-17 capsule

Max. SPL
130 dB SPL
Self-noise
<8 dB-A
Signal-to-noise ratio
87 dB-A
Details Buy now

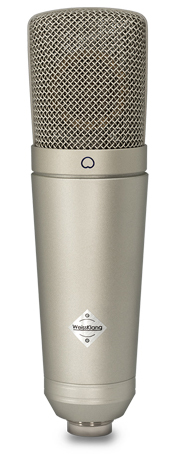

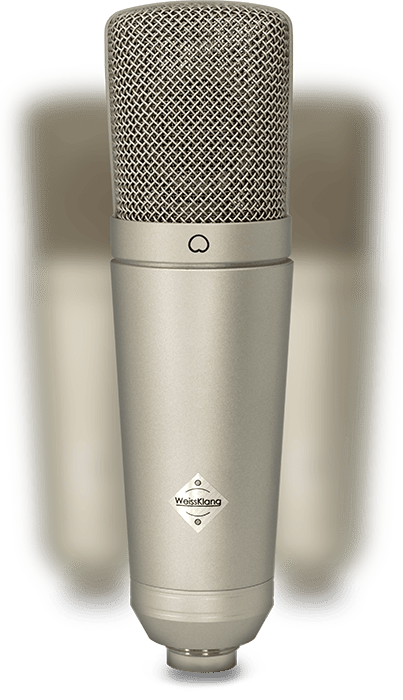

WeissKlang V13 large-diaphragm condenser microphone

Professional Large-diaphragm condenser microphone with WMK-13 capsule

Max. SPL
130 dB SPL
Self-noise
< 10 dB-A
Signal-to-noise ratio
85 dB-A
Details Buy now
Operating principle
Pressure-gradient transducer
Directional pattern
Cardioid / Omni / Figure-8
Maximum SPL
140 dB (Cardioid - at 0.5% THD)
Equivalent self-noise (A-weighted)
Cardioid: 4 dB · Omnidirectional: 6 dB · Figure-8: 5 dB
Equivalent self-noise (CCIR 468-3)
Cardioid: 14 dB · Omnidirectional: 16 dB · Figure-8: 15 dB
Circuitry
Transistor circuit
Supply voltage
P48±4 V
Connector
XLR 3-pin
Capsule
WMK-1D (gold-coated - Ø: 32 mm)
Frequency range
20 Hz - 22.000 Hz
Signal-to-noise ratio (A-weighted)
Cardioid: 90 dB · Omnidirectional: 88 dB · Figure-8: 89 dB
Signal-to-noise ratio (CCIR 468-3)
Cardioid: 80 dB · Omnidirectional: 78 dB · Figure-8: 79 dB
Sensitivity
Cardioid: 23 mV/Pa · Omnidirectional: 18 mV/Pa · Figure-8: 20 mV/Pa
Impedance
50 Ω
Current consumption
3.2 mA
Weight
414 g
Operating principle
Pressure-gradient transducer
Directional pattern
Fixed cardioid pattern
Maximum SPL
140 dB (at 0.5% THD)
Equivalent self-noise (A-weighted)
4 dB
Equivalent self-noise (CCIR 468-3)
14.5 dB
Circuitry
Transistor circuit
Supply voltage
P48±4 V
Connector
XLR 3-pin
Capsule
WMK-1 (gold-coated - Ø: 32 mm)
Frequency range
20 Hz - 22.000 Hz
Signal-to-noise ratio (A-weighted)
90 dB
Signal-to-noise ratio (CCIR 468-3)
79.5 dB
Sensitivity
23 mV/Pa
Impedance
50 Ω
Current consumption
3.2 mA
Weight
414 g
Operating principle
Pressure-gradient transducer
Directional pattern
Fixed cardioid pattern
Maximum SPL
130 dB (at 0.5% THD)
Equivalent self-noise (A-weighted)
<8 dB
Equivalent self-noise (CCIR 468-3)
<18 dB
Circuitry
Discrete transistor circuit
Supply voltage
P48±4 V
Connector
XLR 3-pin
Capsule
WMK-17 (gold-coated - Ø: 34 mm)
Frequency range
20 Hz - 20.000 Hz
Signal-to-noise ratio (A-weighted)
87 dB
Signal-to-noise ratio (CCIR 468-3)
76.5 dB
Sensitivity
24 mV/Pa
Impedance
200 Ω
Current consumption
3 mA
Weight
398 g
Operating principle
Pressure-gradient transducer
Directional pattern
Fixed cardioid pattern
Maximum SPL
130 dB (at 0.5% THD)
Equivalent self-noise (A-weighted)
<10 dB
Equivalent self-noise (CCIR 468-3)
<18 dB
Circuitry
Discrete transistor circuit
Supply voltage
P48±4 V
Connector
XLR 3-pin
Capsule
WMK-13 (gold-coated - Ø: 34 mm)
Frequency range
20 Hz - 20.000 Hz
Signal-to-noise ratio (A-weighted)
85 dB
Signal-to-noise ratio (CCIR 468-3)
77.5 dB
Sensitivity
18 mV/Pa
Impedance
200 Ω
Current consumption
3 mA
Weight
347 g
