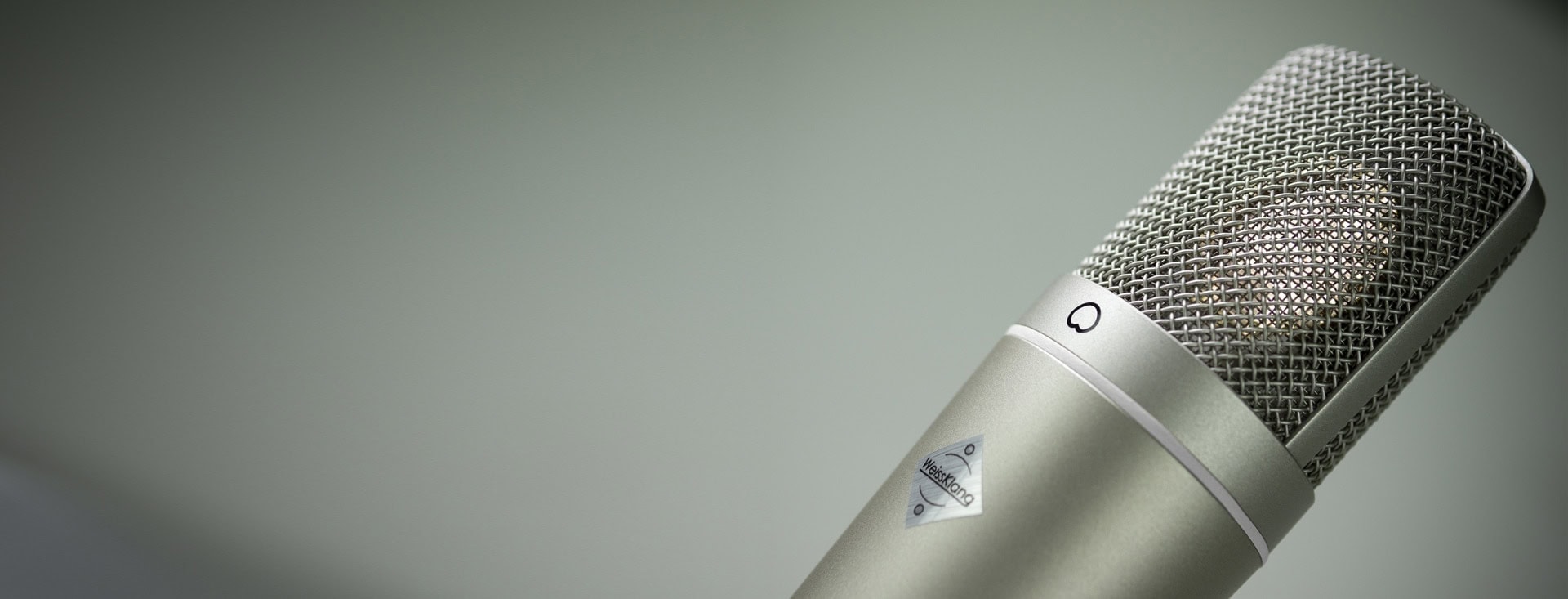

WeissKlang V17 - Microphone view

Welcome to

WeissKlang V17,

a large-diaphragm condenser microphone with a brilliant sound,
an excellent impulse response and a high performance.

Featured on

For the highest versatility

The WeissKlang V17 combines proven technical characteristics with an uncompromising sound and is equipped with the latest technology.
It’s very versatile and perfect for all demanding applications in professional recording environments.

The V17 utilizes a discrete semiconductor circuit and offers superior acoustic qualities, an excellent resolution and the highest sound pressure level transmission.

With an equivalent noise level (self-noise) of <8 dB-A it is also very low-noise and offers great dynamic range with high sensitivity.

TransHarmonic Technologie des WeissKlang V17 - Röhrensound

Transistor meets technology

TransHarmonic™ combines the sonic advantages of tubes with the outstanding technical properties of transistors (self-noise, dynamics, resolution).

The newly developed and patented TransHarmonic™ technology creates very subtle and harmonic overtones that contribute to the V17’s outstanding resolution and musical sound – without the use of tubes.

The overall tone gets an unmatched three-dimensionality with full low and mid-range frequencies as well as smooth high frequencies.

For detailed recordings

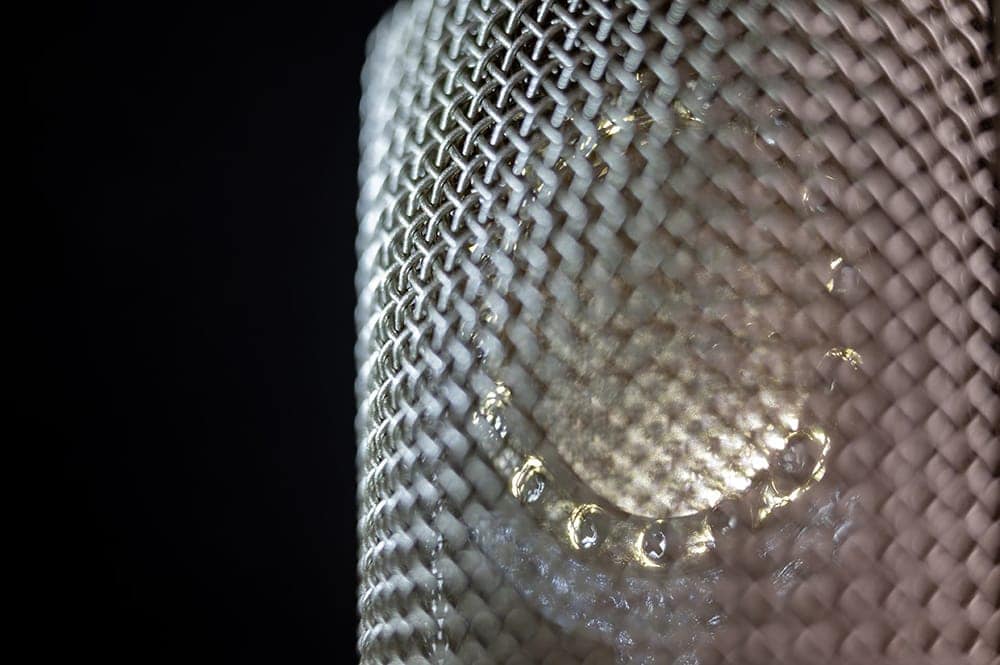

The new WMK-17 capsule is gold-sputtered, least sensitive at the rear (cardioid) and edge-terminated.
With the very broad frequency range from 20 Hz – 20.000 Hz, the V17 allows for an excellent recording of extremely low (and high) frequencies.

The frequency response is flat with a subtle and balanced high-frequency lift from 2 kHz. Therefore the capsule captures even the finest details and works with an excellent impulse response.

In order to get the best possible acoustic properties, the circuit and the capsule are matched.

Thoughtful Engineering

The V17’s low-resonance body is made of copper and hardened aluminum. The slightly roughened and powder-coated surface is very resistant and durable.

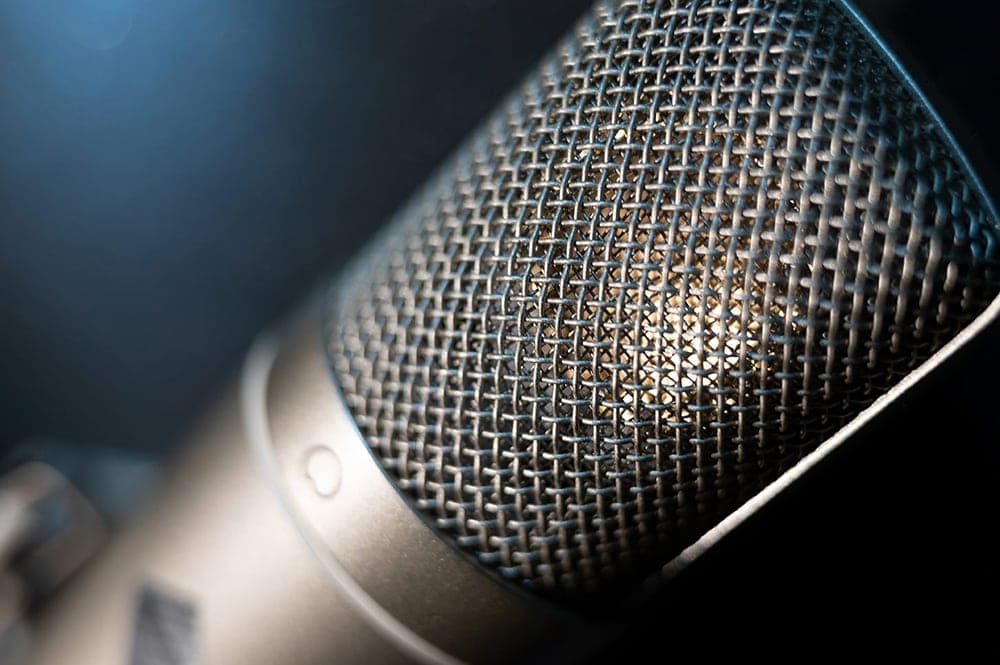

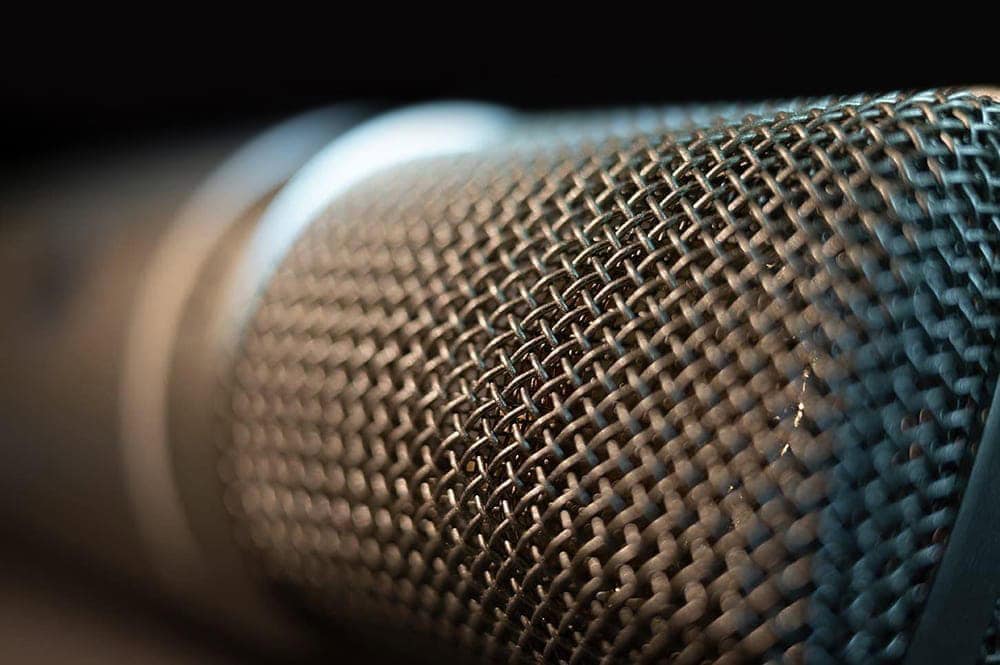

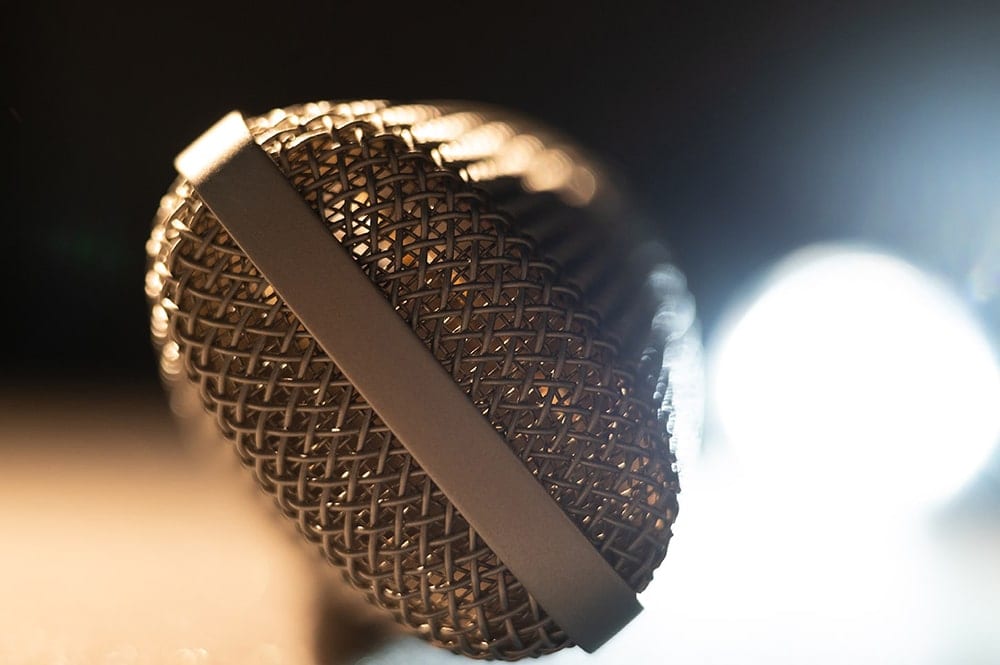

The two-layer steel mesh grille protects the capsule from plosive sounds, while the shape of the grille ensures even scattering of the incoming sound, thus avoiding so-called “standing waves”.

Record without noise

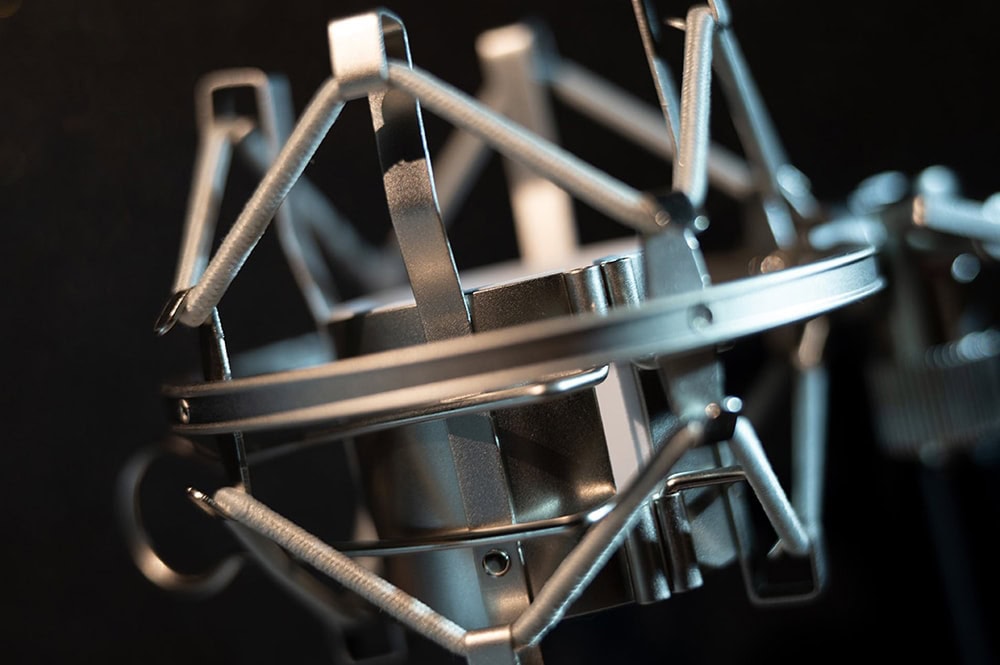

The included MA-1 shock mount isolates the microphone from physical vibration, floor and stand noise.

The low frequency absorption goes up to 18 dB.

Equipped with elastic and replaceable rubber bands and a soft foam layer, the MA-1 shock mount ensures quick and secure attachment with adjustable tilt angle.

SPECIFICATIONS

Operating Principle
Pressure grading transducer

Directional pattern
Cardioid

Maximum SPL
130 dB (@ 0.5% THD)

Equivalent noise level
<8 dB (A-weighted)<18 dB (CCIR 468-3)

Circuit
Discrete transistor circuit

Supply voltage
P48±4 V

Connector
XLR 3-pin

Capsule
WMK-17 (gold-sputtered – Ø: 34 mm)

Frequency range
20 Hz – 20.000 Hz

Signal-to-noise ratio
87 dB (A-weighted)76.5 dB (CCIR 468-3)

Sensitivity
24 mV/Pa

Rated Impedance
200 Ω

Current consumption
3 mA

Weight
398 g

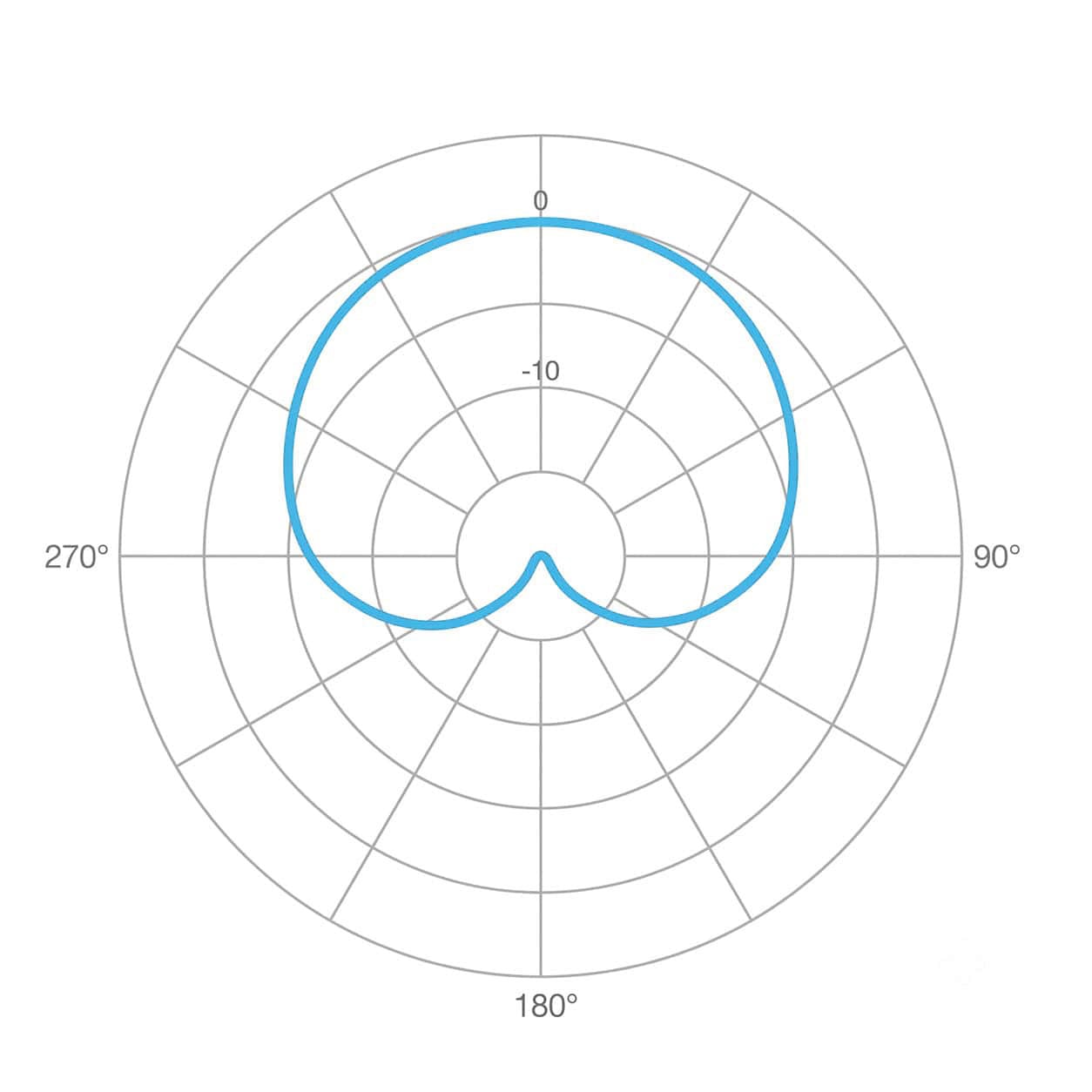

Polar diagram - 1 kHz

WeissKlang V17 - Polardiagramm

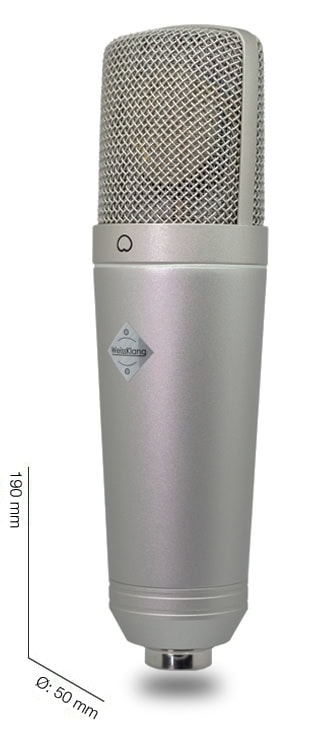

WeissKlang V17 - Großmembran Kondensatormikrofon - Maße

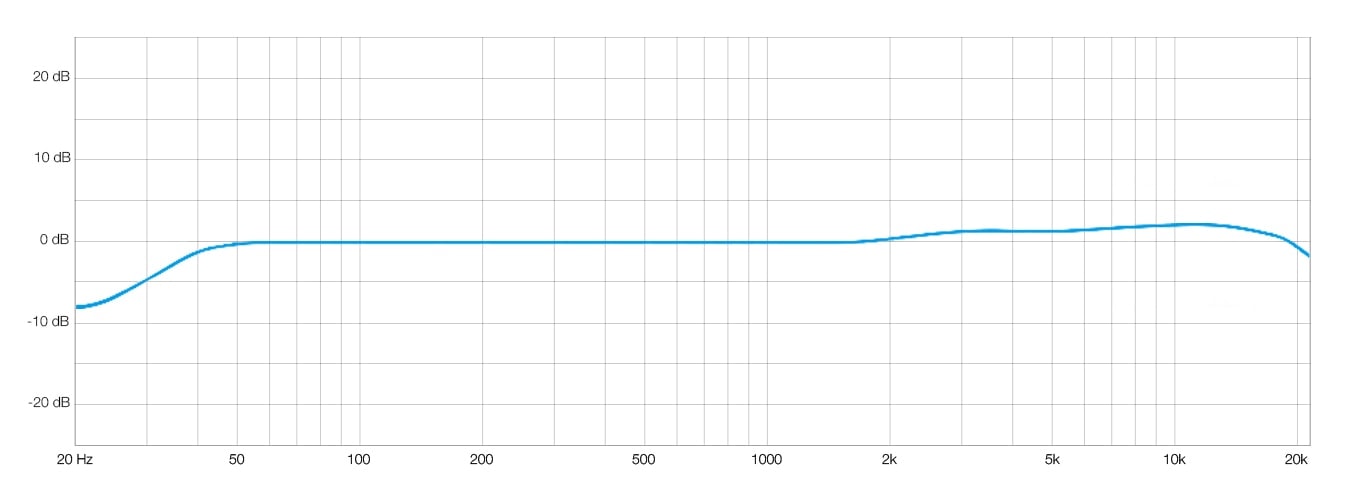

Frequency response - free-field measurement

THE V17 COMPARED

Here are some comparative examples of the WeissKlang V17 in various recording situations.

For listening we recommend high resolution speakers or headphones.

(Gain: 15dB - RME preamplifier and converter - loudness normalized - unprocessed)

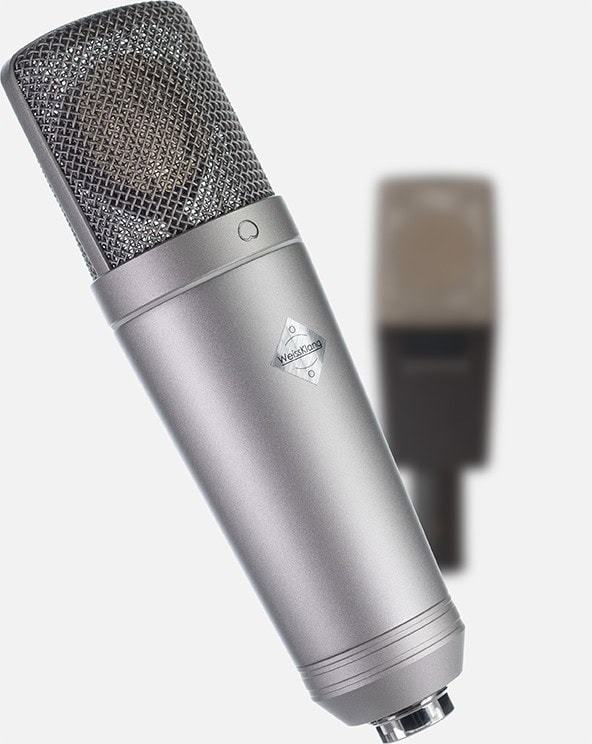

WeissKlang V17 Großmembran Mikrofon gegen Vergleichsmikrofon
Compared with
Multi-pattern LDC Microphone

– Made in Austria (1986-2004)
– Amplifier: Transformer
– Price: appx. 800 EUR

Vocals (Female)

Microphone distance: 10 cm

WeissKlang V17

Comparison model

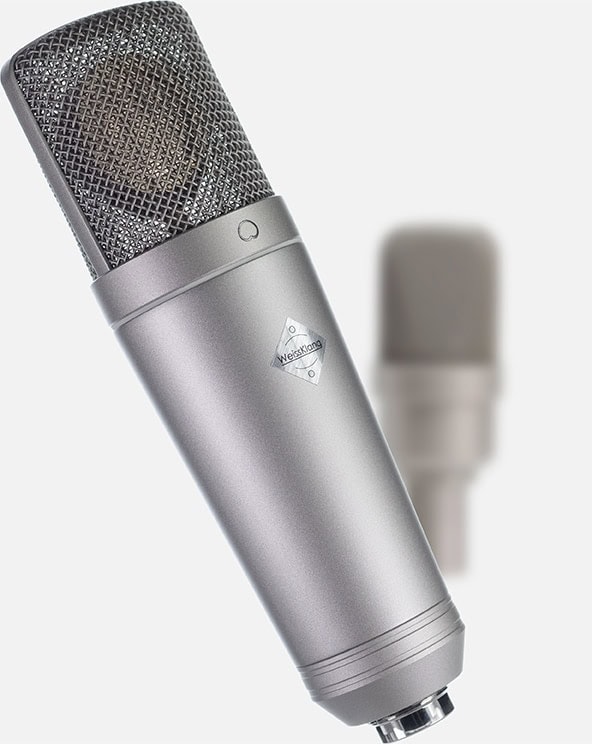

WeissKlang V17 Großmembran Mikrofon gegen Vergleichsmikrofon
Compared with
Large-diaphragm Condenser Microphone

– Made in Germany
– Amplifier: Transistor
– Price: appx. 1300 EUR​

Vocals (Male)

Microphone distance: 10 cm

WeissKlang V17

Comparison model

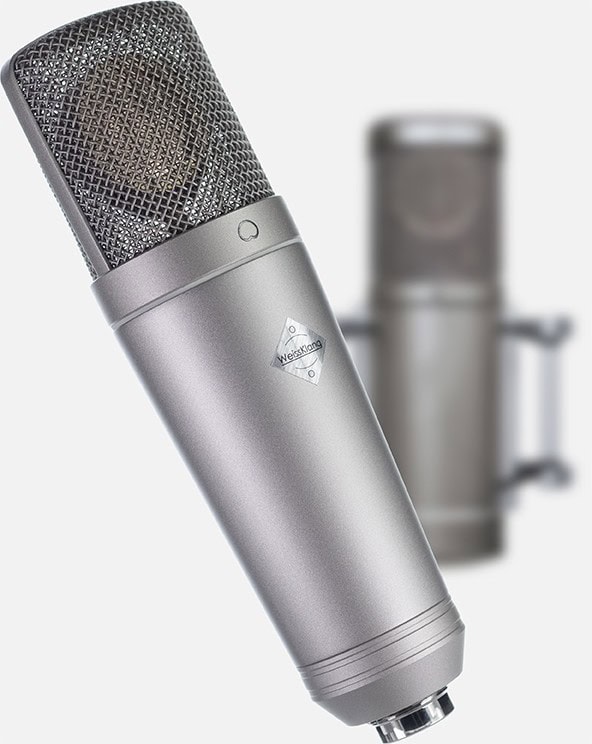

WeissKlang V17 Großmembran Mikrofon gegen Vergleichsmikrofon
Compared with
Large-diaphragm Condenser Microphone

– Made in Germany
– Amplifier: Transformer
– Price: appx. 1800 EUR​

Vocals (Female)

Microphone distance: 10 cm

WeissKlang V17

Comparison model

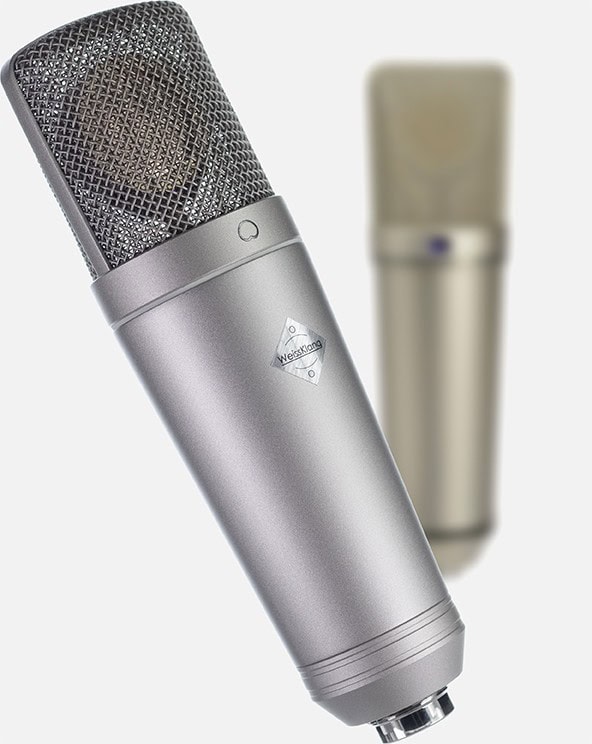

WeissKlang V17 Großmembran Mikrofon gegen Vergleichsmikrofon
Compared with
Multi-pattern LDC Microphone

– Made in Germany
– Amplifier: Transformer
– Price: appx. 2700 EUR​

Vocals (Male)

Microphone distance: 10 cm

WeissKlang V17

Comparison model

REVIEWS

Amazona.de Logo

Conclusion: Very good ☆☆☆

„The WeissKlang V17 comes from a company philosophy that is very modern. The very reasonably priced large-diaphragm condenser microphone is almost flawless in every aspect.
The WeissKlang V17 can easily compete with microphones, that cost twice as much and even more.“

Amazona.de
Michael Fendt

Professional Audio Magazin Logo

Conclusion: Top class / Very good

„With the V17, WeissKlang has released a great successor. Thanks to the wide-band frequency boost and the innovative TransHarmonic tube circuit emulation the microphone delivers a solid sound at a top price. Especially producers who primarily record vocals should definitely check out the V17.“

Professional Audio (06/2018)
Johannes Dicke

Worldwide customers say

WeissKlang V17 Logo - Made in Germany

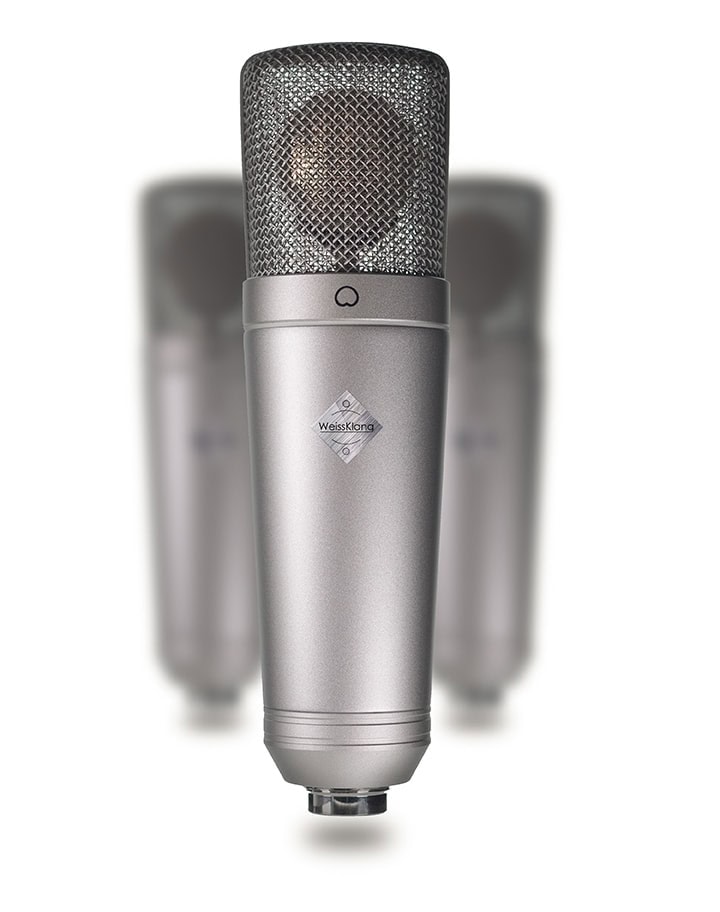

WeissKlang V17 - High-quality large diaphragm microphone
WeissKlang V17 Logo - Made in Germany

499 EUR

incl. VAT and shipping
(outside the European Union VAT-free)
